APPLICATIONS:
-

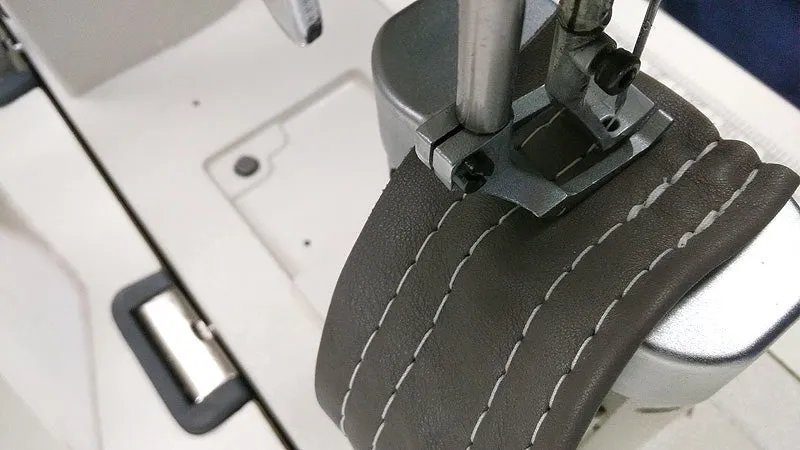

For sewing medium to heavy weight materials such as fabrics, leather, vinyl, synthetics, laminated and coated products.
-
Suitable for sewing such products as aviation seating and interiors, automotive head rests, furniture upholstery, automotive interiors, webbing straps, and similar items.
FEATURES:

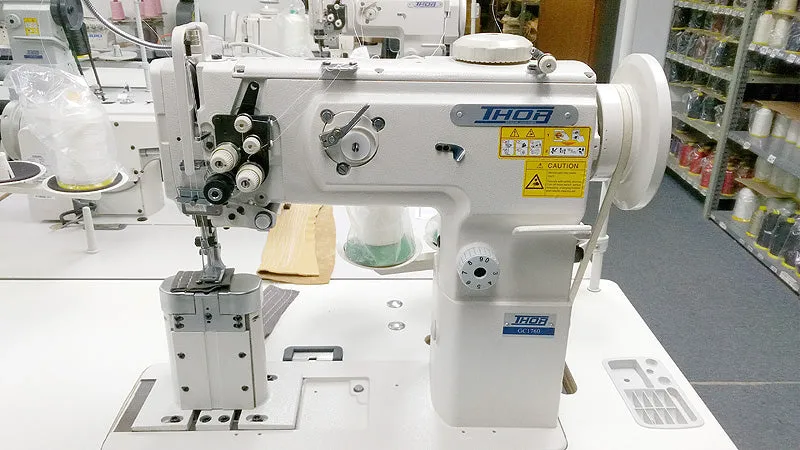

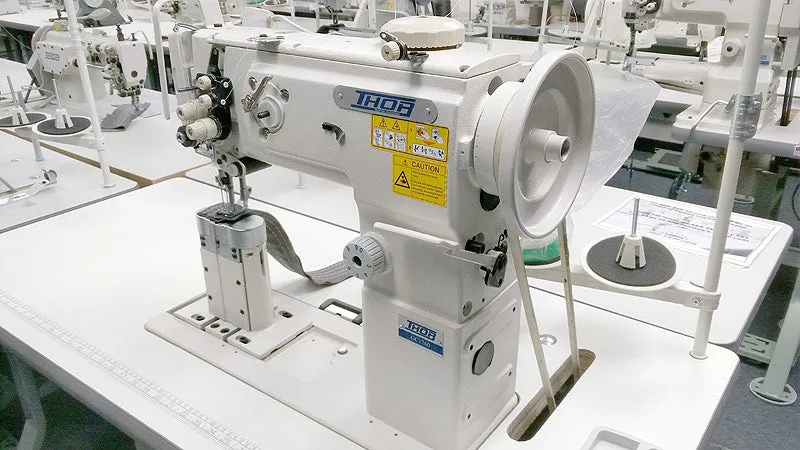

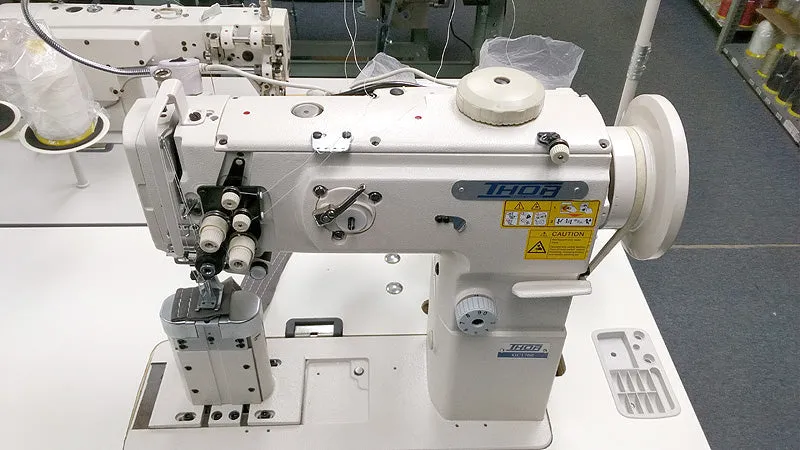

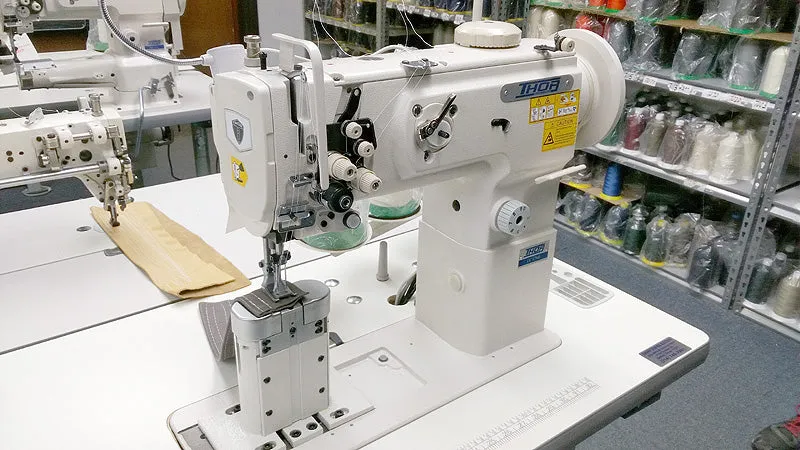

This double needle post bed sewing machine has a dual tension mechanism, with which the machine can support high tension sewing with thick thread. This means that the machine produces seams of excellent quality on a broader range of materials, extending from light to heavy weight materials.
The high 16mm presser foot lift enables easy material handling for heavy sewing.
The 1760s’ maximum stitch length of 2 ½ stitches per inch allows a broader range of uses, such as awnings and sacks.
The stitch length is easily adjusted by the stitch dial.

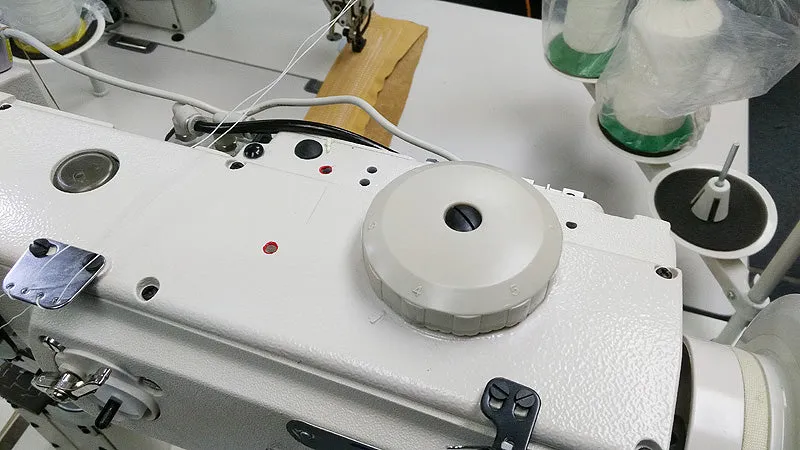

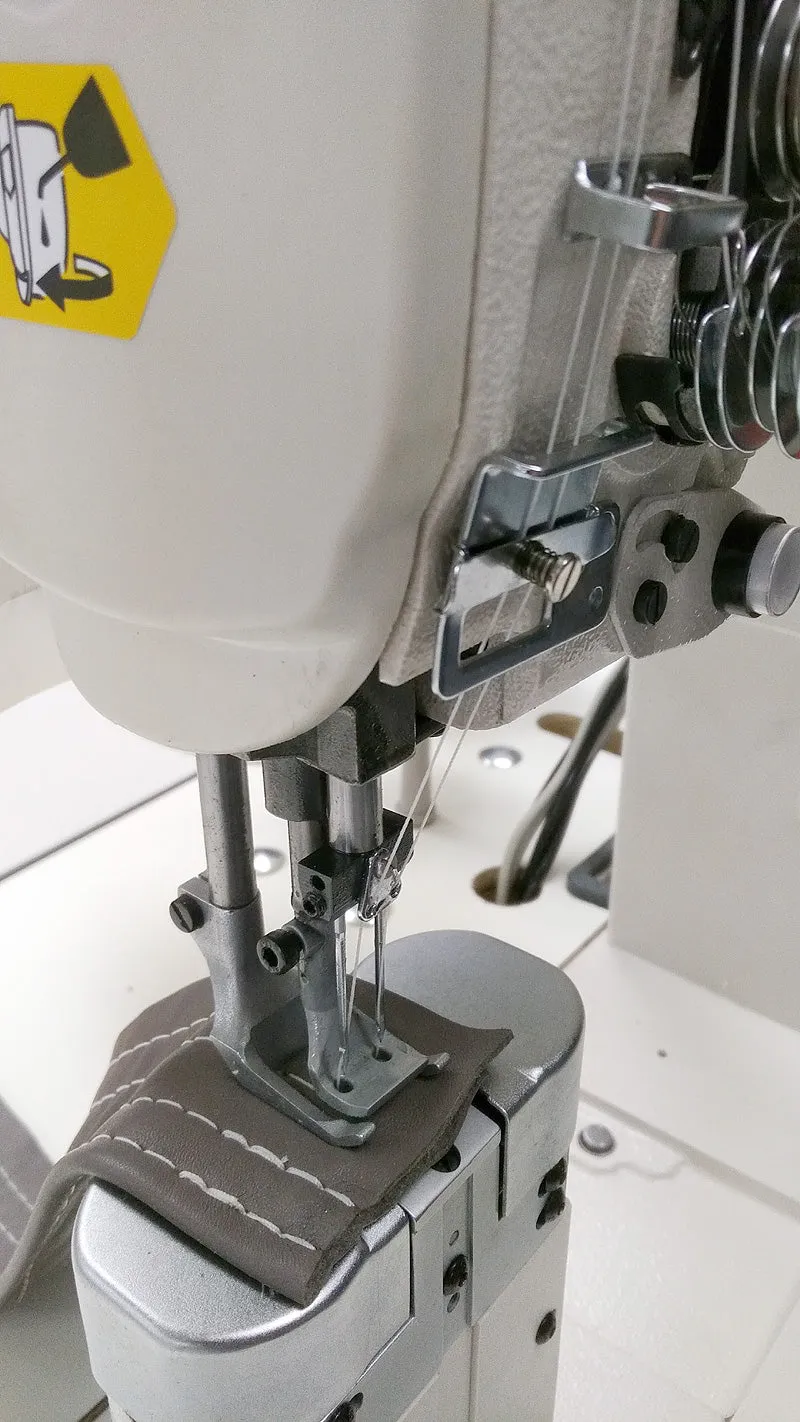

The 1760 has a unique feature which allows the user to simply dial in the walk height of the Walking Foot. This prevents the Walking Foot from snagging on thicker material.

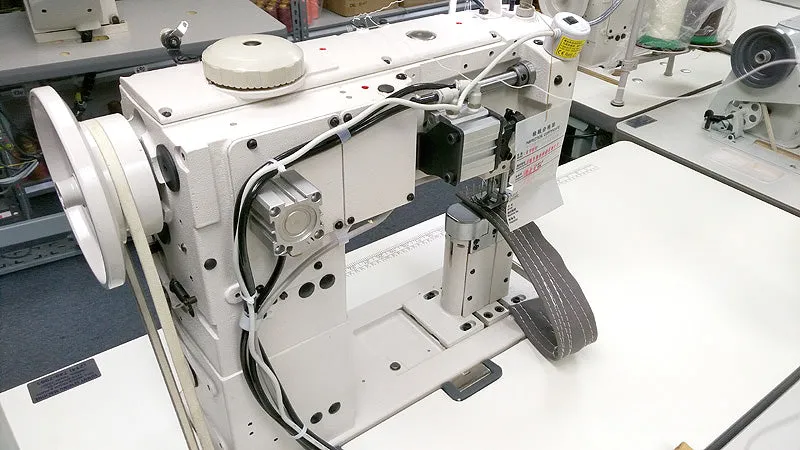

This machine has AIR FOOT LIFT installed and you will need 50 to 60 PSI compressed air flow.

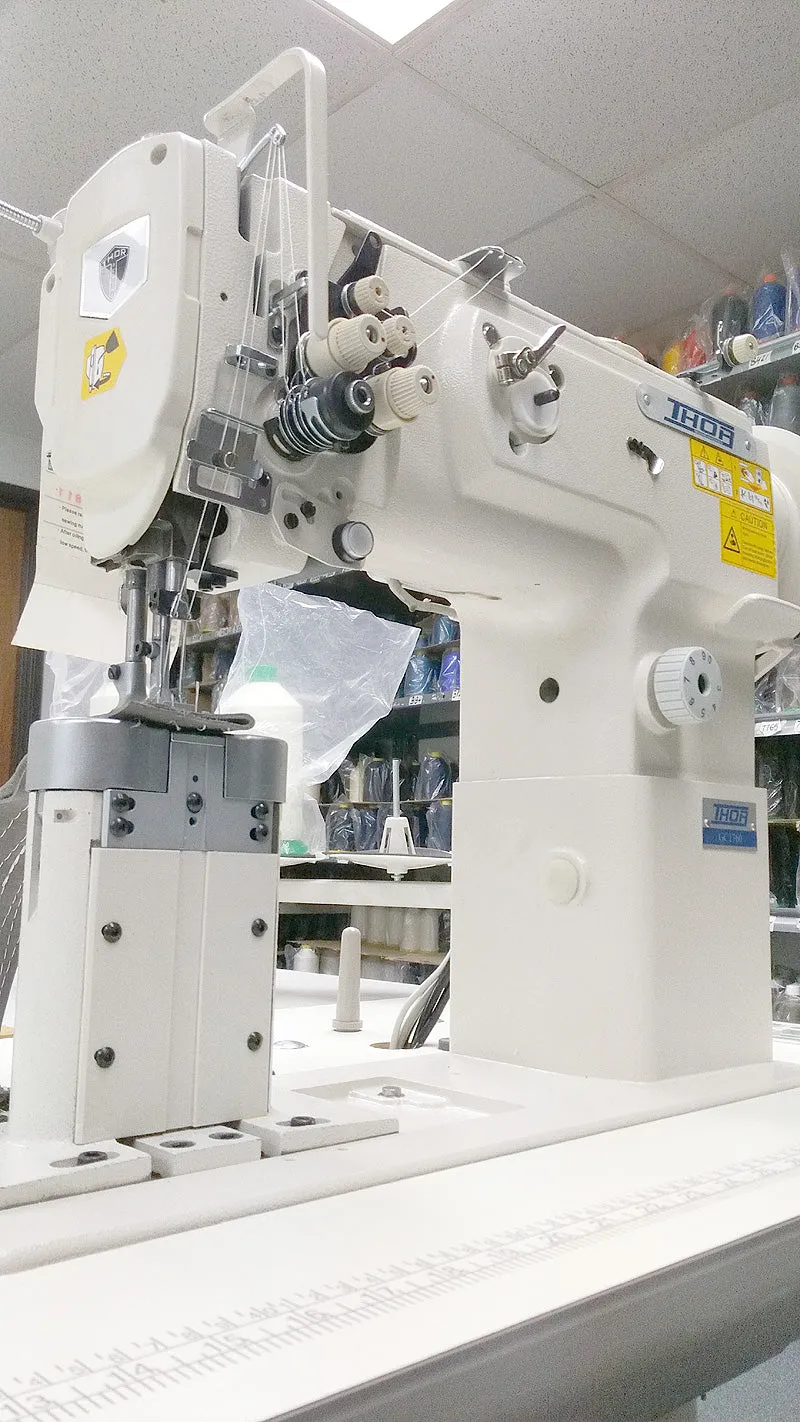

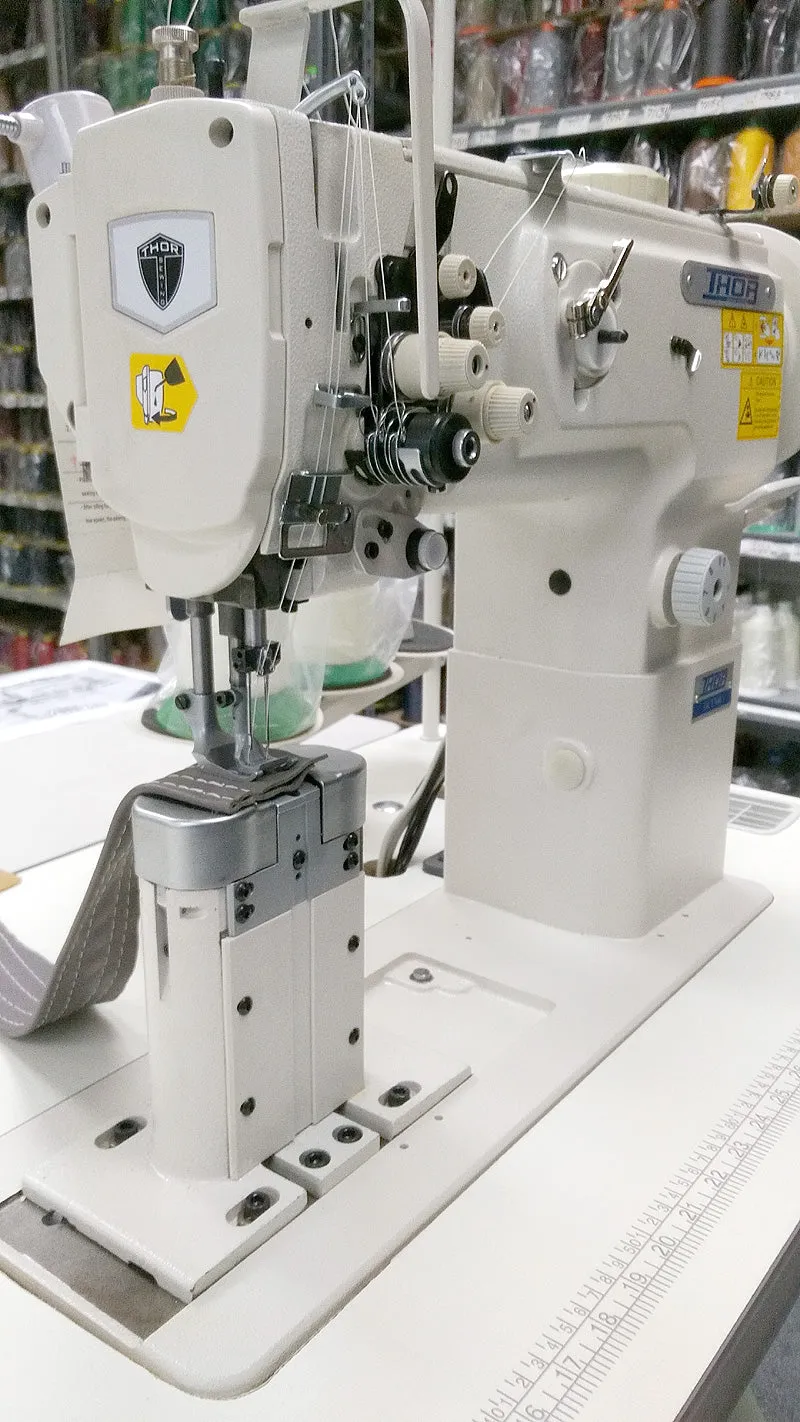

The post bed has a height of 6" and the clearance from bed to machine neck is 10.5"
TECHNICAL SPECS:
- APPLICATION: For Heavy Materials
- MAX SEWING SPEED: 2,500 SPM
- NEEDLE GAUGE: 3/8" Installed - 1/4" Gauge Also Available
- MAX STITCH LENGTH: 9mm Forward/Reverse (2 1/2 Stitches Per Inch)
- NEEDLE BAR STROKE: 36mm
- FOOT LIFT: 16mm by Knee, 9mm by Hand
- WALKING FOOT HEIGHT ADJUSTMENT DIAL: Standard
- THREAD TAKE UP: Slide Type

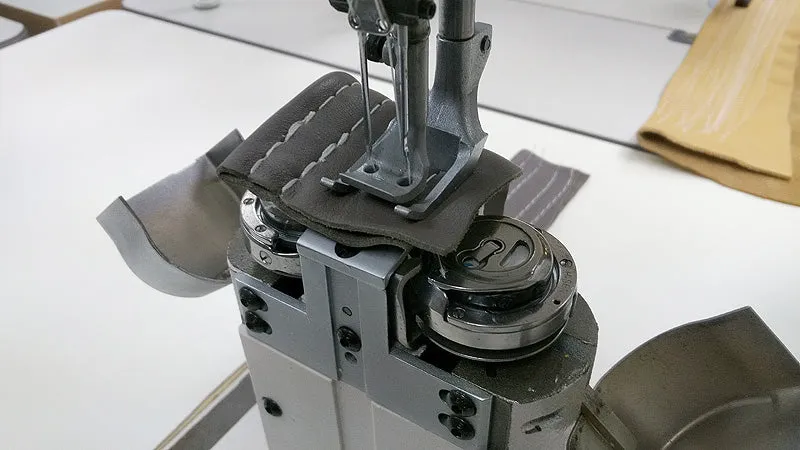

- HOOK: Horizontal Axis DOUBLE Capacity Hook with U Style Bobbins
- NEEDLE: 135x17
- THREAD: TEX 70 to TEX 210

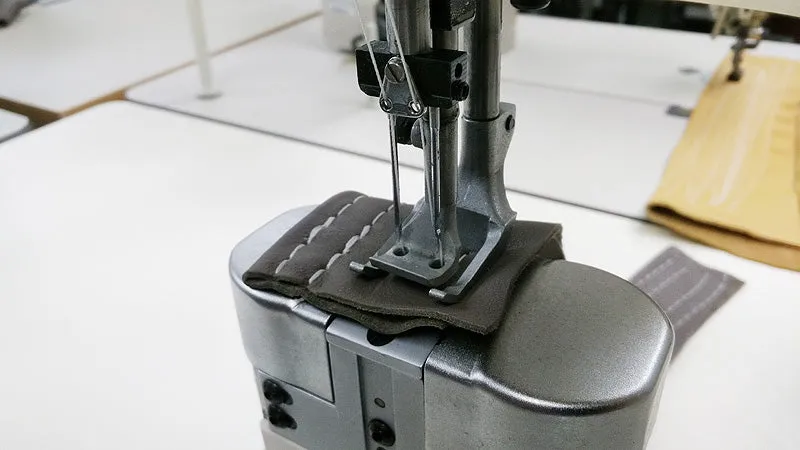

- FEED ACTION: Complete Rectangular Feed
- NEEDLE THREAD TENSION: DUAL Tension Method
- STITCH LENGTH CHANGE METHOD: By Dial
- SAFETY MECHANISM: Standard
- LUBRICATION: Centralized Oil Wick Lubrication (Automatic Hook Lubrication)
MACHINE SETUP:

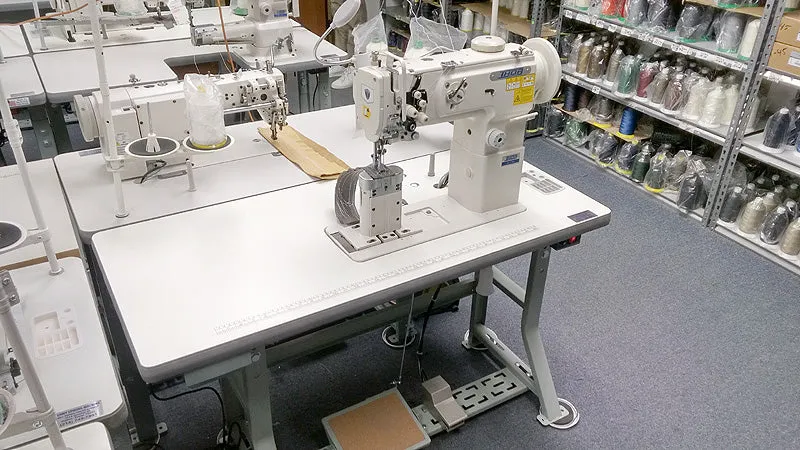

This machine ships complete and fully assembled - ready to sew upon arrival.
It includes:
- Machine Head
- Table Top
- Heavy Duty Stand
- SERVO Motor
- LED Light
- Manuals
- Extra needles, bobbins, and tools.
MOTOR & VOLTAGE:
This machine is equiped with a SERVO motor operating on standard 110 Volts power.
WARRANTY:
1 Year Warranty
