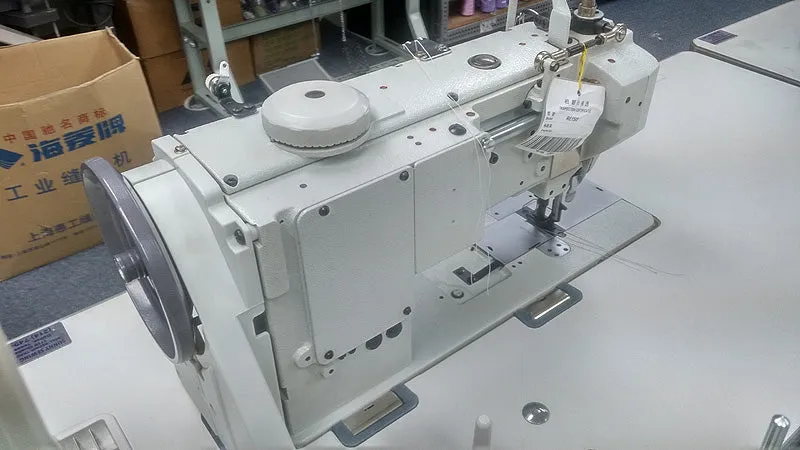

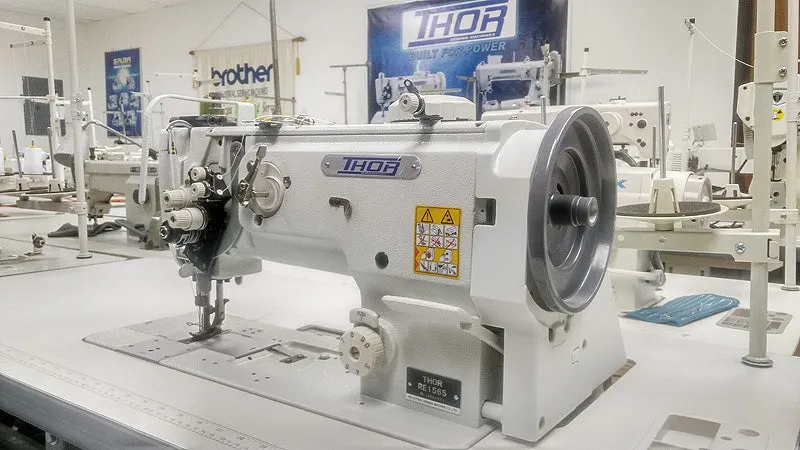

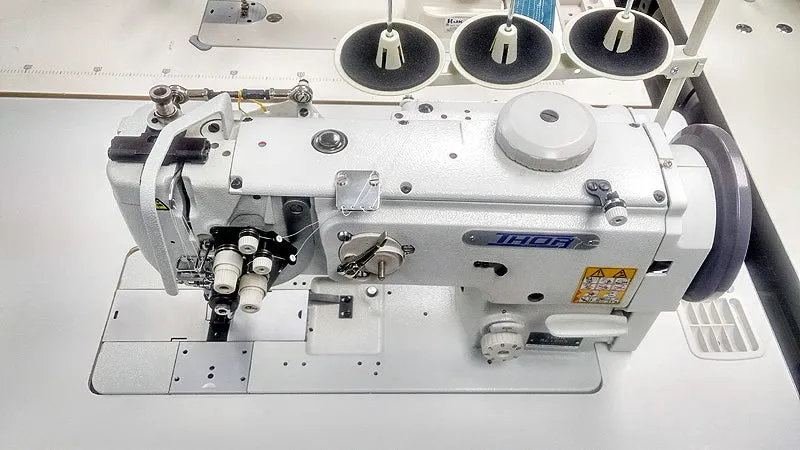

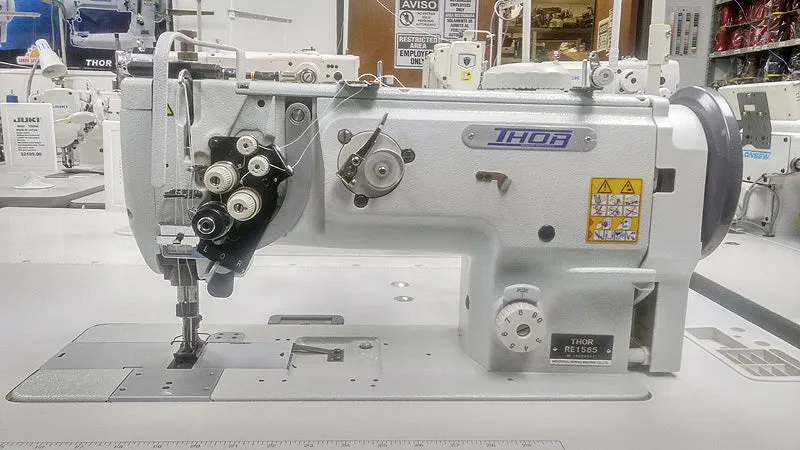

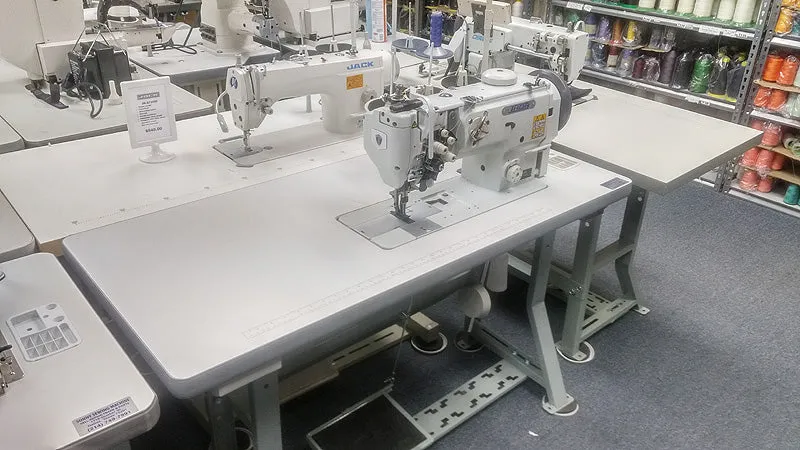

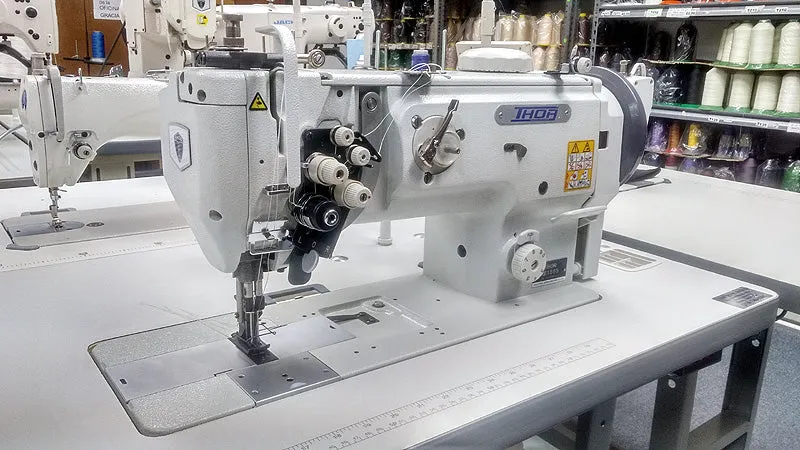

Name: THOR GC1565 Split Needle Bar Double Needle Walking Foot Sewing Machine
SKU: 491646

APPLICATIONS:

For sewing medium to heavy weight materials such as fabrics, leather, vinyl, synthetics, laminated and coated products.
Suitable for sewing such products as automotive, marine and aviation upholstery, cargo handling belts, containers, covers, sails, tents, camping trailer covers, awnings, hand bags, etc.

FEATURES:

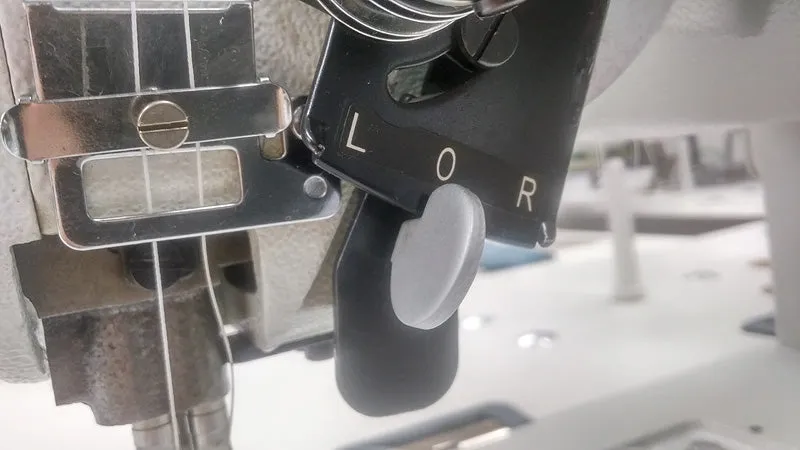

Get around corners like a pro utilizing the SPLIT NEEDLE BAR mechanism on this machine. Engage or Disengage the left or right needle as needed to sew the perfect corner on a variety of medium to heavy weight materials.

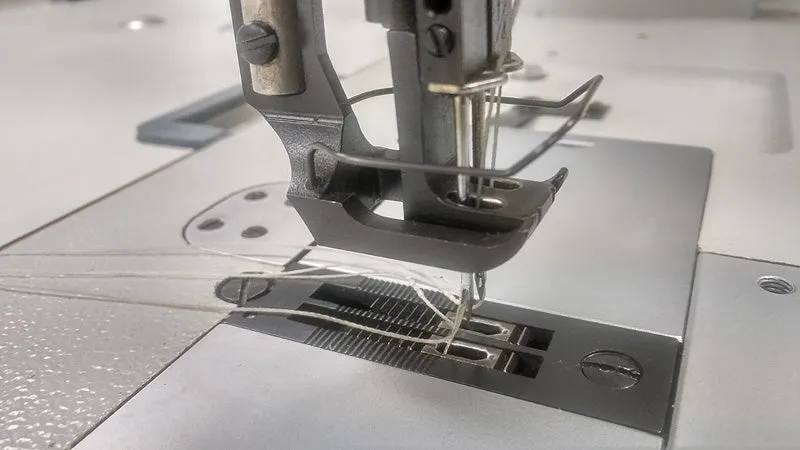

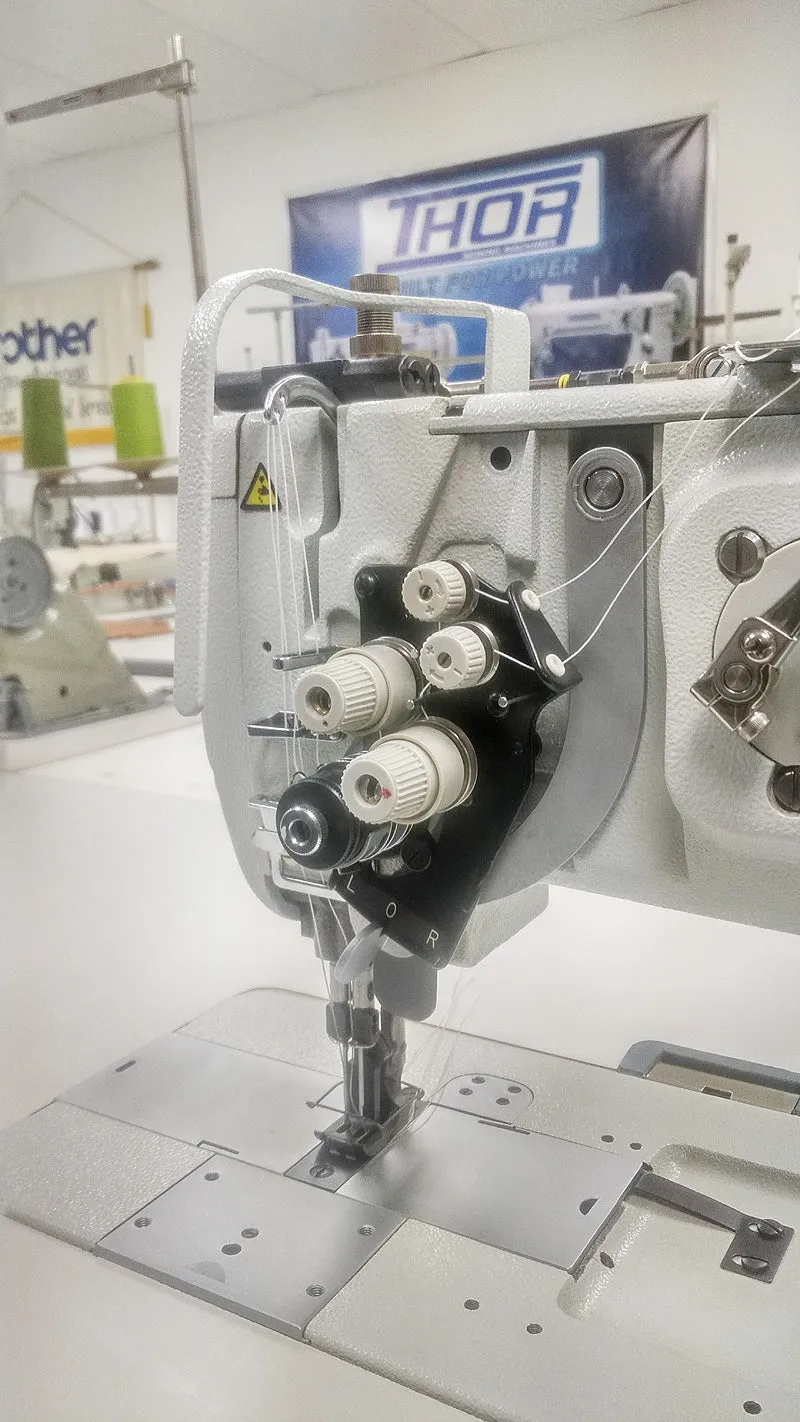

This double needle machine has a dual tension mechanism, with which the machine can support high tension sewing with thick thread. This means that the machine produces seams of excellent quality on a broader range of materials, extending from light to heavy weight materials.

The high 16mm presser foot lift enables easy material handling for heavy sewing.

The 1565's maximum stitch length of 2 ½ stitches per inch allows a broader range of uses, such as awnings and sacks.

The stitch length is easily adjusted by the stitch dial.

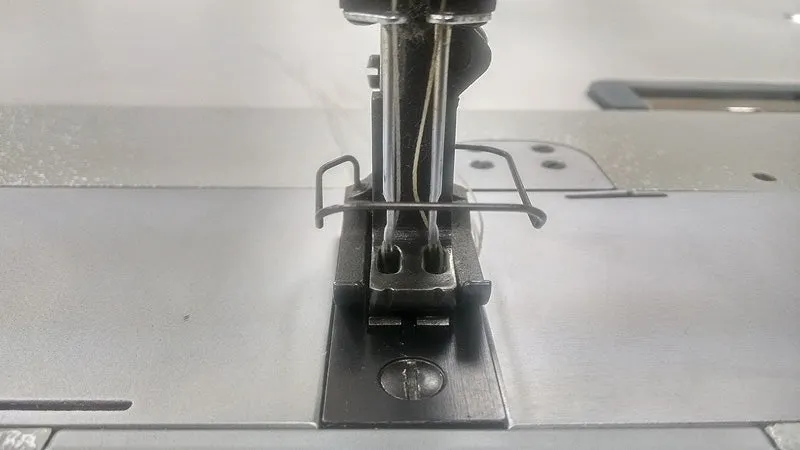

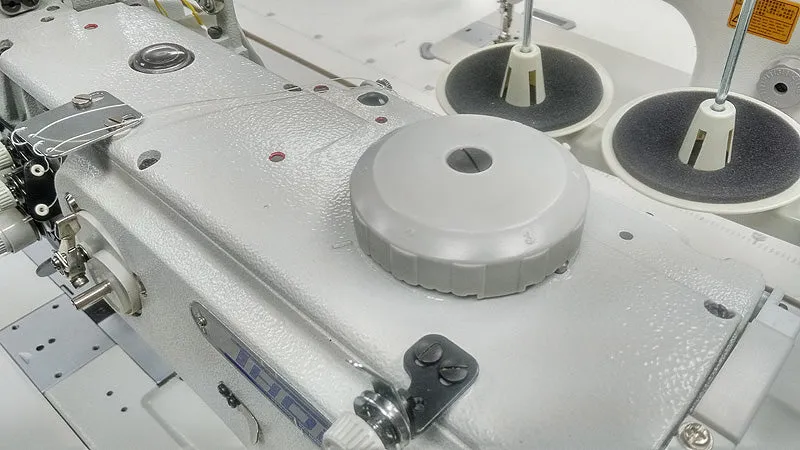

The 1565 has a unique feature which allows the user to simply dial in the walk height of the Walking Foot. This prevents the Walking Foot from snagging on thicker material.

TECHNICAL SPECS:

APPLICATION: For Heavy Materials

MAX SEWING SPEED: 2,500 SPM

NEEDLE GAUGE: 1/4"

MAX STITCH LENGTH: 9mm Forward/Reverse (2 1/2 Stitches Per Inch)

NEEDLE BAR STROKE: 36mm

FOOT LIFT: 16mm by Knee, 9mm by Hand

WALKING FOOT HEIGHT ADJUSTMENT DIAL: Standard

THREAD TAKE UP: Slide Type

HOOK: Horizontal Axis DOUBLE Capacity Hook with U Style Bobbins - Also uses M Bobbins

NEEDLE: 135x17

THREAD: TEX 40 to TEX 210
